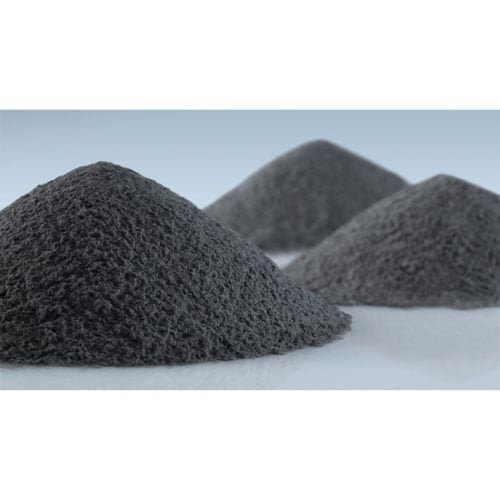

1> Rebonded or sintered crushed gray/black particles; the bonded particles are spherical or nearly spherical, with good fluidity;
The crushed particles are in irregular shapes.
2> Maximum operating temperature 700°C.
3> High hardness, dense coating, resistant to wear from abrasive particles, fretting wear, adhesive wear, and erosion wear.
4> High fracture toughness.
Cr3C2-37WC-18NiCoCr
| Specification | Grainsize (μm) |
Loose density (g/cm³) |
Hall velocity (s/50g) |
Application |
| 37WC-5320 37WC-4515 37WC-3810 |
53-20 45-15 38-10 |
3.0-3.5 3.0-3.5 3.0-3.5 |
≤25 – – |
Gate valves, ball valves, paper rollers, hydraulic cylinders, compressor rods, metallurgical rolling dies, mechanical components, etc. |
| Main components (%): Cr3C2 – WC – NiCoCr = 45/37/18 Coating properties: Hardness 1050-1150 HV0 .3, Strength > 60 MPa, Porosity < 1.5%, Impact rate 40-48% |
||||
Cr3C2-10WC-25NiCr
| Specification | Grainsize (μm) |
Loose density (g/cm³) |
Hall velocity (s/50g) |
Application |
| 10WC-5320 10WC-4515 10WC-3810 |
53-20 45-15 38-10 |
2.5-3.5 2.5-3.5 2.5-3.5 |
≤25 – – |
Pump ball valve components, power generation boilers, biomass incineration boilers, chemical industry, etc. |
| Main components (%):Cr3C2 – WC – NiCr = 65/10/25 Coating properties: Hardness 950-1050 HV0 .3, Strength > 60 MPa, Porosity < 1.5%, Impact rate 40-48% |
||||
Cr3C2-20NiCr
| Specification | Grainsize (μm) |
Loose density (g/cm³) |
Hall velocity (s/50g) |
Application |
| 20Ni-5320 20Ni-4515 20Ni-3810 |
53-20 45-15 38-10 |
2.3-2.9 2.3-2.9 2.3-2.9 |
– – – |
Steam turbines, aircraft engines, valve stems, power boilers, metallurgical furnace rods and hydraulic valves, etc. |
| Main components (%): Cr3C2 – NiCr = 80/20 Coating properties: Hardness 850-1000 HV0 .3, Strength > 60 MPa, Porosity < 1.5%, Impact rate 40-48% |
||||
