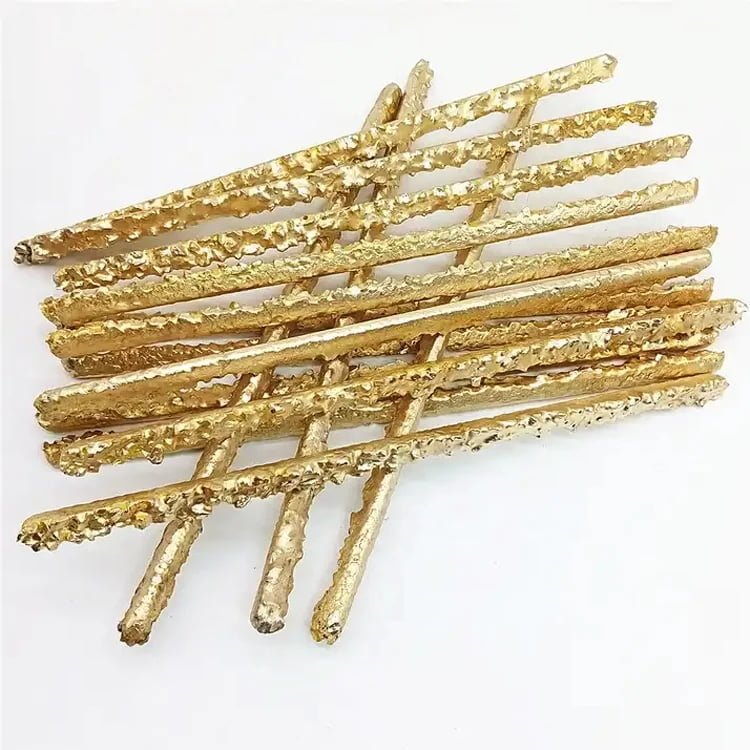

Carbide Composite Welding Rods
CARBIDE ROD
Joint Carbide

Carbide Composite Welding Rods Composite & Sintered Grade

Premium tungsten carbide rods engineered for wear resistance, hardfacing and component repair across mining, petroleum, metallurgy and heavy industry. Manufactured from 100% pure WC raw material with precision vacuum sintering.

90.3+
HRA Hardness
100%
Pure WC
±0.01
mm Tolerance
Technical Specifications
Material 100% Pure Tungsten Carbide (WC)
Hardness HRA 90.3 - 91.5
Tolerance ±0.01 mm
Binder Cobalt (Co)
Process Vacuum Sintering
Application Mining, Petroleum, Hardfacing, Wear Parts
Request a Quote Contact Us
Product Details

YG Series Tungsten Carbide Composite Welding Rods are made by mixing granular tungsten carbide particles as the hard phase with copper alloy or nickel alloy as the bonding phase, then sintered at high temperature.

Grade YG series
Granular Particles WC – Co Tungsten carbide
Hardness HRA 89.5-91
Rod Overall Length (MM) 440MM – 450MM
Rod Diameter (MM) 15-20MM
Carbide Grits Content 70% – 60% (7:3 or 6:4)
Two Types Composite rod with copper matrix alloy / LT
Composite rod with nickel matrix alloy / LN



Grade Nominal Size (mm) Grits Size (mm) Welding Rod Szie and Weight Note
LT / LN-3.2 3.2 1.6 – 3.2 (500g±5g/440±10mm) / pcs LT: Composite rod with
copper matrix alloyLN: Composite rod with
nickel matrix alloy
LT / LN-4.8 4.8 3.2 – 4.8 (500g±5g/440±10mm) / pcs
LT / LN-6.4 6.4 4.8 – 6.4 (500g±5g/440±10mm) / pcs
LT / LN-8.0 8.0 6.4 – 8.0 (500g±5g/440±10mm) / pcs
LT / LN-9.5 9.5 8.0 – 9.5 (500g±5g/440±10mm) / pcs
LT / LN-11.0 11.0 9.5 – 11.0 (500g±5g/440±10mm) / pcs
How We Make It

MANUFACTURING PROCESS

Every carbide rod is produced through a precisely controlled 6-step process, ensuring consistent hardness, dimensional accuracy and surface quality.

01

Raw Material Preparation

Premium WC powder and cobalt binder are precisely weighed and batched to specification.

02

Load the Vessel

Mixed materials are loaded into the sintering vessel under controlled conditions.

03

Vacuum Condensation

High-temperature vacuum sintering bonds WC particles into a dense, uniform structure.

04

Clean, Polish & Dry

Rods are surface-cleaned, precision-ground and dried to meet dimensional tolerances.

05

Quality Inspection

Hardness, TRS, density and dimensional checks performed on every batch.

06

Packaging & Shipping

Individual protective packaging ensures rods arrive damage-free worldwide.

1
2
3
4
5
6
Where It's Used

APPLICATION FIELDS

Carbide rods serve critical wear-resistance and hardfacing roles across heavy industry worldwide.

6+
INDUSTRIES

Mining & Drilling

Rock drilling, tunneling and ore extraction equipment.

Oil & Gas

Downhole tools, drill bits and wear-resistant components.

Hardfacing & Welding

Composite welding rods and laser cladding feedstock.

Agricultural Machinery

Soil-engaging tools, tillage parts and wear protection.

Construction Machinery

Road milling, piling and heavy-duty earthmoving components.

General Industry

Metallurgy, coal, power generation and component repair.

Key Customer Groups
Welding Consumables Importers Hardfacing Material Suppliers Mining Equipment Manufacturers Petroleum Machinery Factories Metallurgical Equipment Makers Agricultural Machinery OEMs Construction Machinery Firms Laser Cladding Processors Wear-Resistant Part Distributors Maintenance & Repair Workshops
Why Choose Us

PRODUCT ADVANTAGES

SUPERIOR HARDNESS

HRA 90.3-91.5 hardness for outstanding wear resistance in the most demanding environments.

HIGH PRECISION

Fine finished surface with tight dimensional tolerances of ±0.01 mm for precision applications.

EXTENDED LIFE

Premium 100% pure WC raw material ensures long service life with cost-effective pricing.

RELIABLE PERFORMANCE

Excellent structural stability and lasting durability for heavy-duty industrial use.

DIRECT SOURCE
Manufactured from 100% pure tungsten carbide raw material -- no intermediaries.
FULL SUPPLY CHAIN
3 factories covering every step from raw material to finished rod.
19+ YEARS
Trusted by global clients across mining, oil & gas, and heavy industry since 2007.
Get a Quote

REQUEST INQUIRY

Tell us your requirements for carbide rods -- grade, diameter, length, quantity and application. Our technical team will respond within 24 hours with a tailored quotation.
